ArchitectureApartment floor plan
A two-room apartment at 1:50 with walls, doors, windows, furniture, room areas and dimensions.
Try TrattoCAD on real drawings
Six drawings from four trades, two of them in 3D, drawn by our team. Open them in the viewer with one click, or download the .DXF and open it yourself.
Architecture

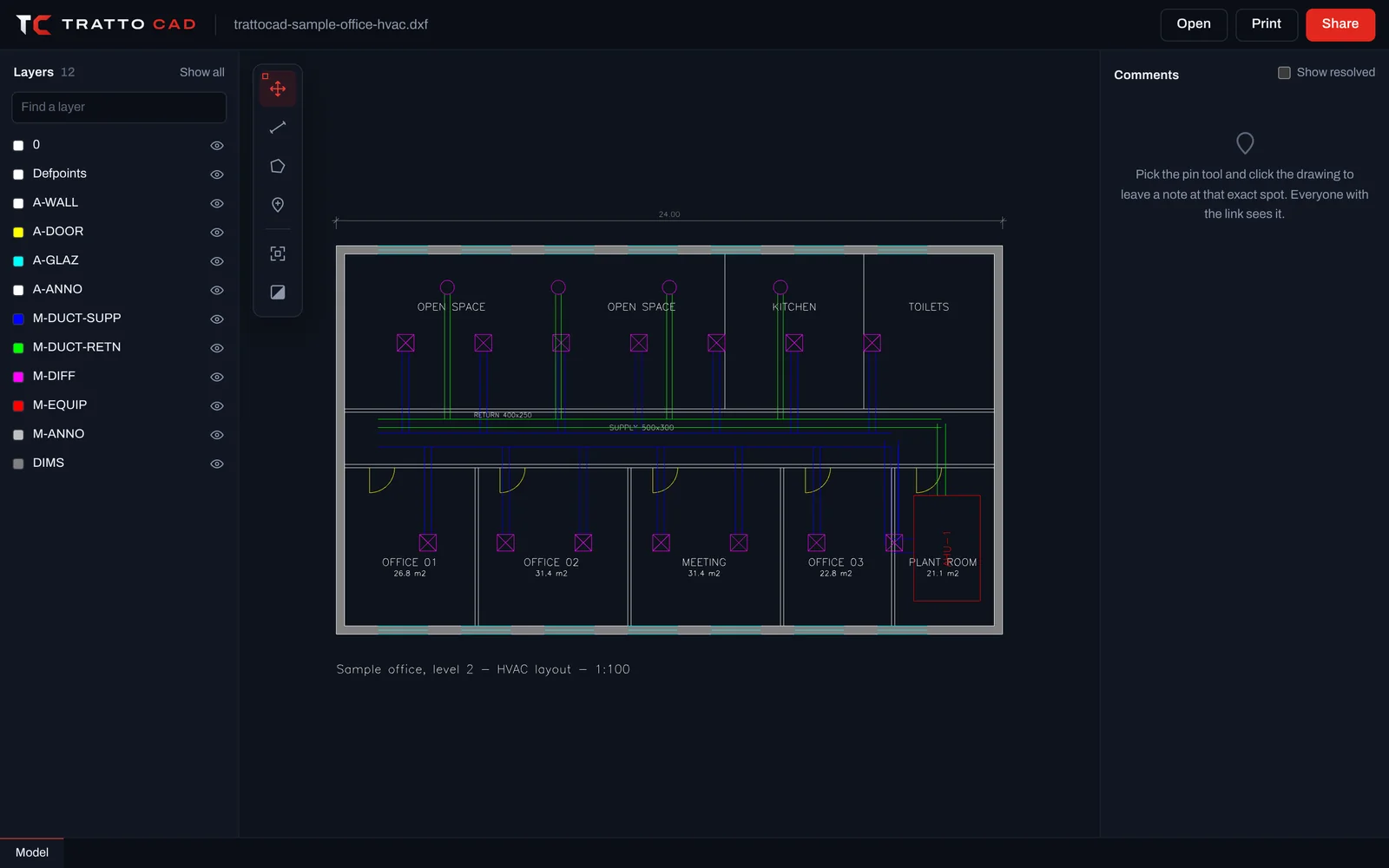

MEP and HVACOffice HVAC layout
A 24 m office floor with supply and return ductwork, diffusers and the air handling unit, on separate layers.

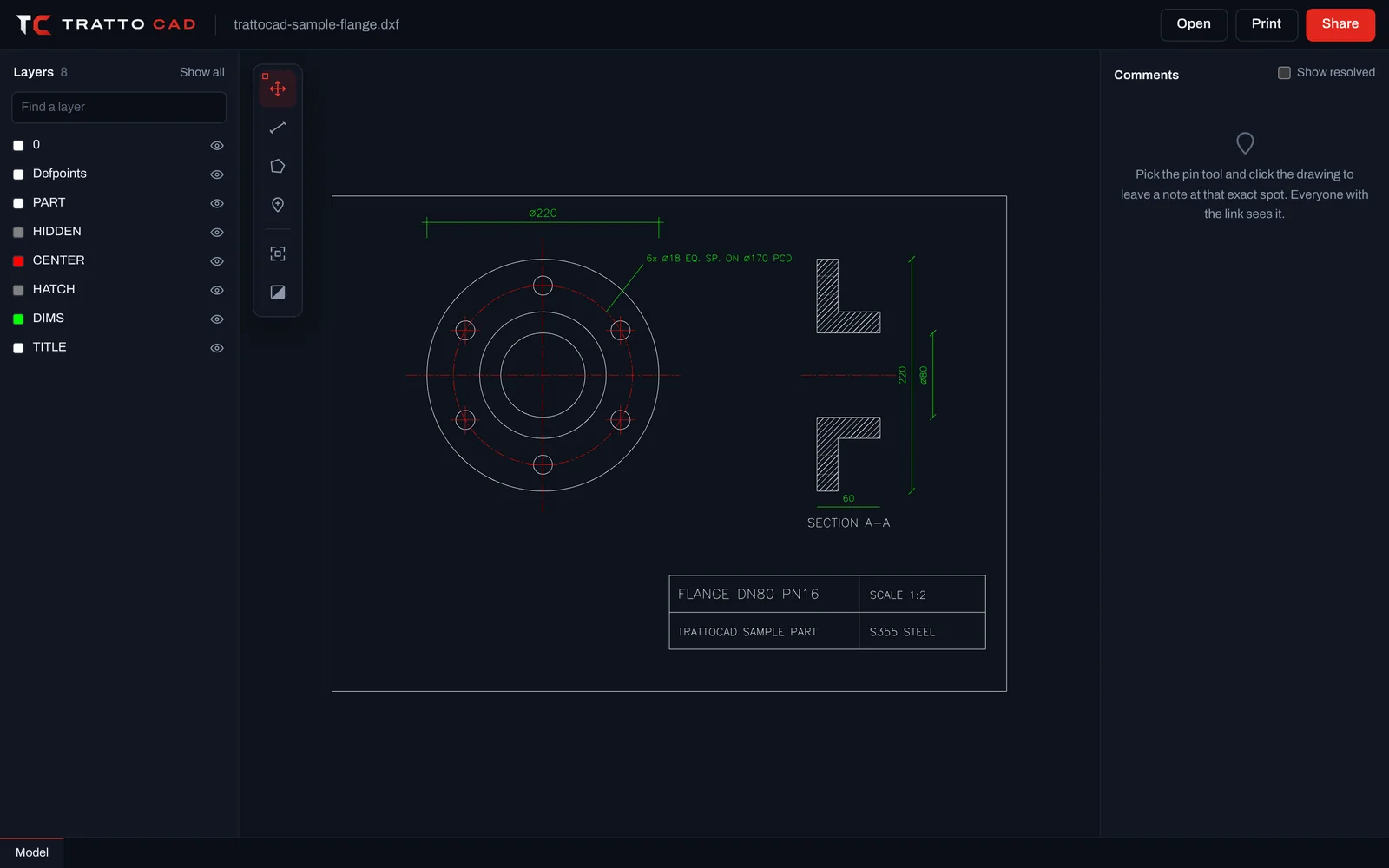

MechanicalFlange DN80
A flange drawn at 1:2 with a section, hatching, centre lines, hidden lines, dimensions and a title block.

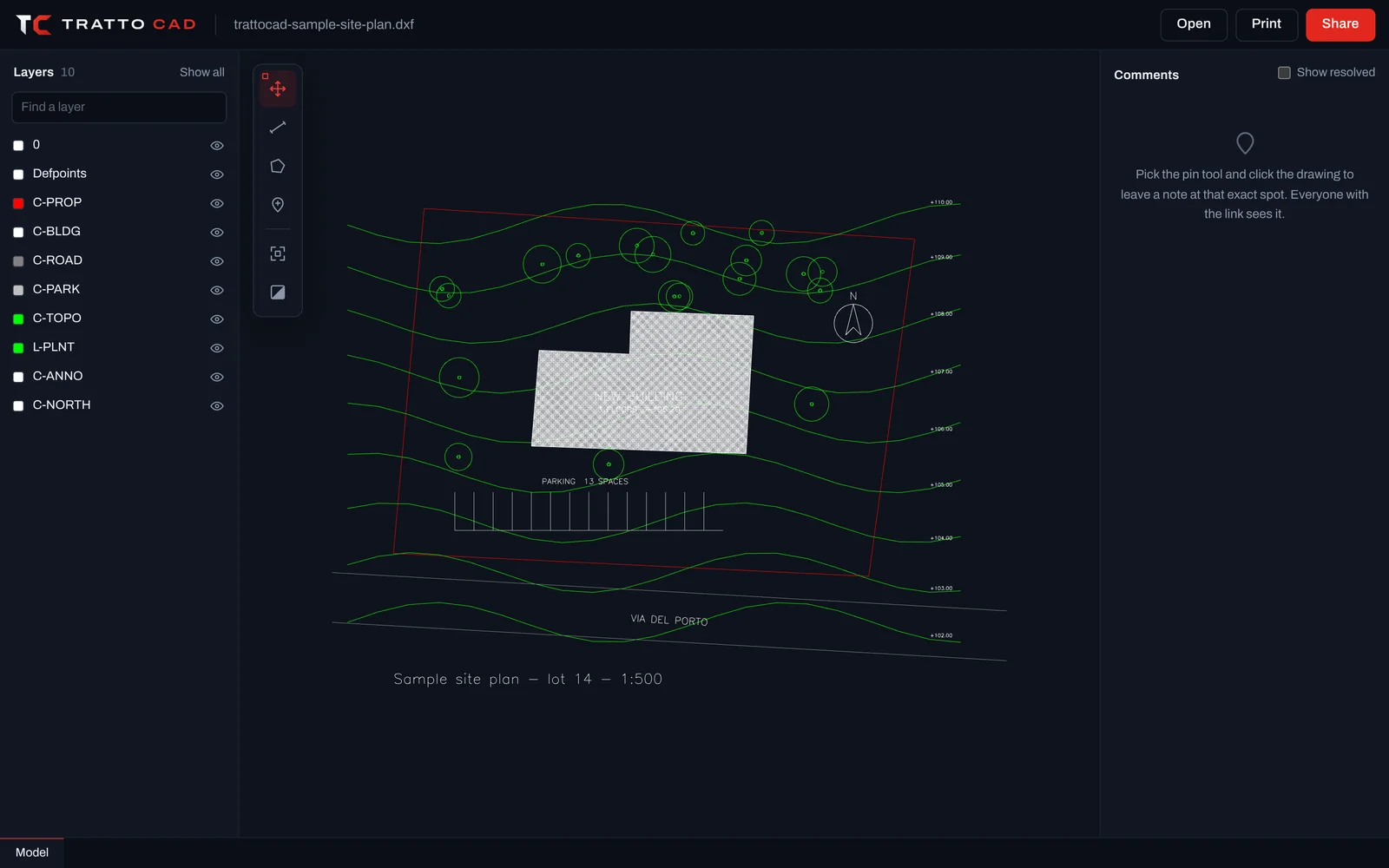

ConstructionSite plan, lot 14
A building lot at 1:500 with the plot boundary, contour lines, parking, trees and a north arrow.
Mechanical 3DShaft bracket with pulley, 3D
A 3D assembly: drilled base plate, upright with a bore, ribs, hub, shaft, V-belt pulley and bolts. Measure the holes, cut it, explode it.
Architecture 3DTwo-storey house, 3D
A 10 by 7 m house with slabs, walls with openings, windows, doors, a pitched roof and a chimney, on architectural layers.
The sample drawings are free to use for testing and teaching.
Open your first drawing now.
Free, with no account and nothing to install. Drop a .DWG or .DXF and it is on screen in seconds.
